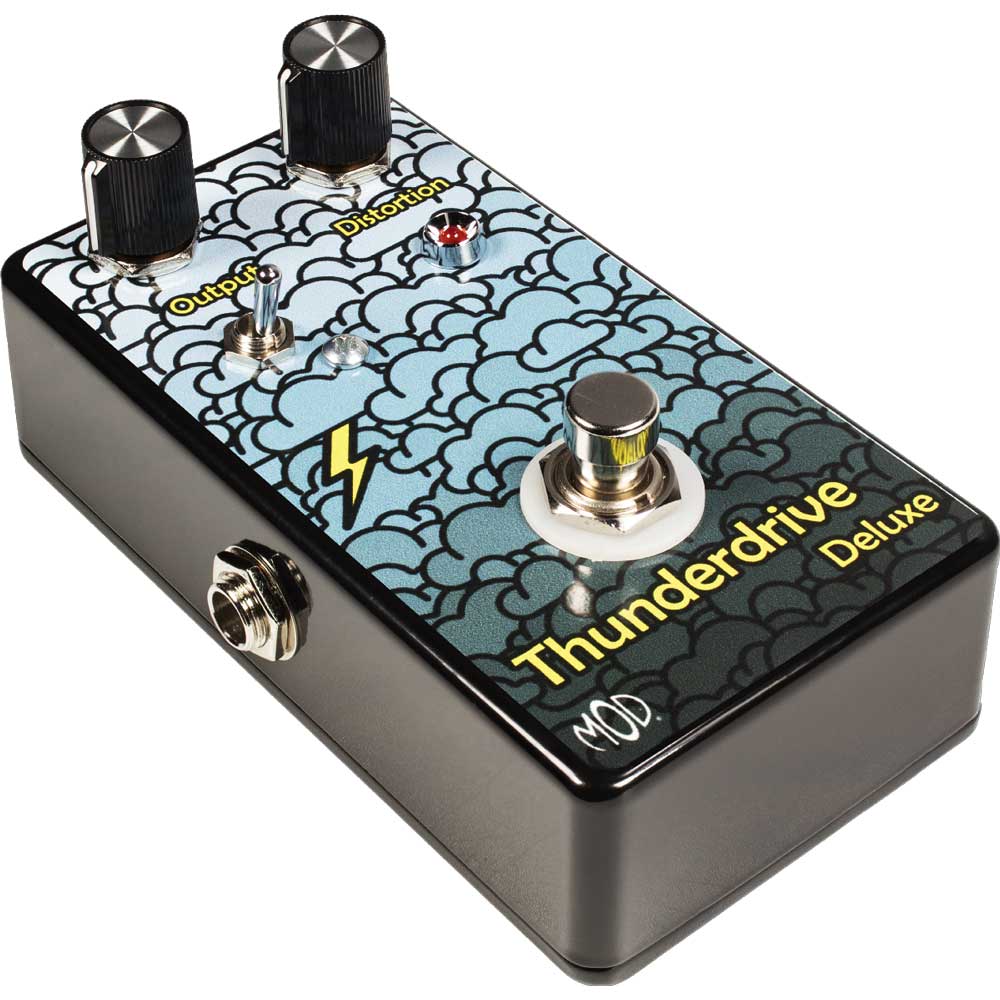

Thunderdrive Deluxe Overdrive Distortion DIY Pedal Kit

Kit Instructions

Schematic

DC Jack Mod

Adjusting volume control and gain controls provides a wide variety of tones in spite of its simple construction. The Turbo switch provides an additional boost in volume and less internally generated distortion. It is capable of overdriving the preamp section of your guitar amp or adding its own layer of distortion at lower volume. The current draw of this pedal is very low at 1.3 milliamps, allowing for long battery life.
