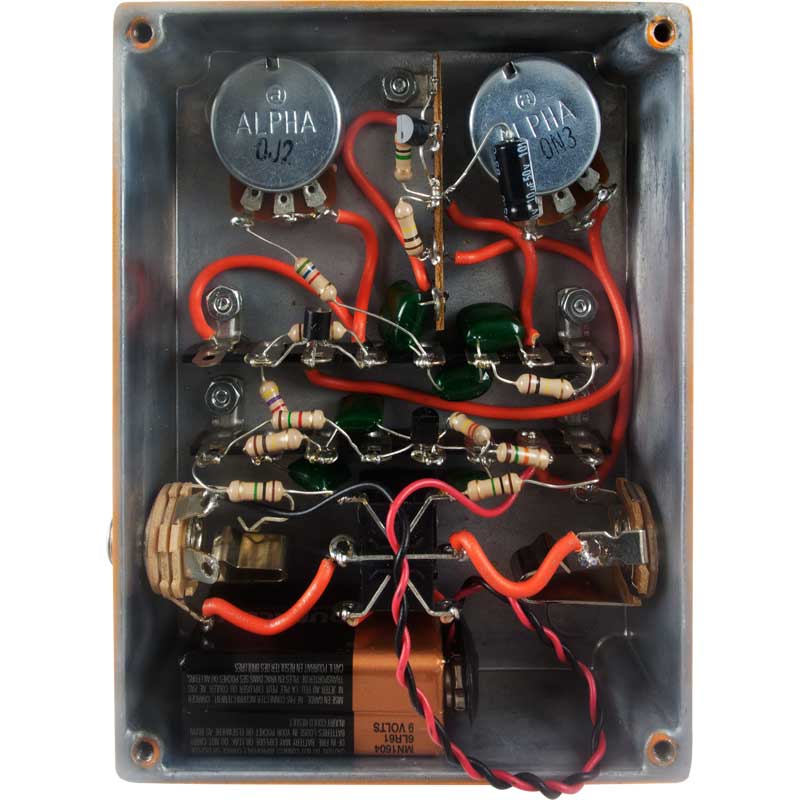

The Mod® Electronics Trill tremolo pedal offers classic tremolo tones in an easy-to-build kit. The Trill's Speed knob provides a wide range from a very slow to rapid-fire effect. The Depth knob varies the ratio between effected and dry signal.

Using modern, low-noise transistors makes operation of The Trill quiet with no signal drop when engaged. The Trill uses true-bypass footswitching so it is out of the signal path when not engaged.

All you need to provide is solder and tools! Uses 9 volt battery which is not included.
