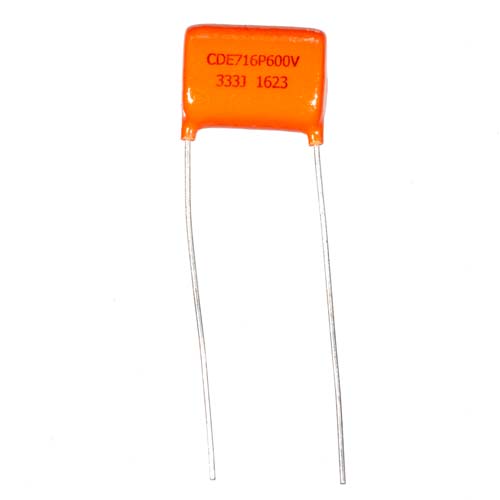

.033uF Orange Drop 716P 600V Polypropylene Capacitor

High performance version of the popular 715P series. Made from polypropylene film and foil with pure copper leads, making these ideal for high pulse current applications.

Polypropylene has a very low dissipation factor, low dielectric absorption, and exhibits excellent capacitance stability. These characteristics combined with the direct connection of the lead wire to the extended foil electrode makes this series ideal for high current, high pulse applications.

• 5% tolerance
• Rated for 85 degrees celsius
• 48mm lead length
• 18mm lead spacing
• 21x16.5x9mm
