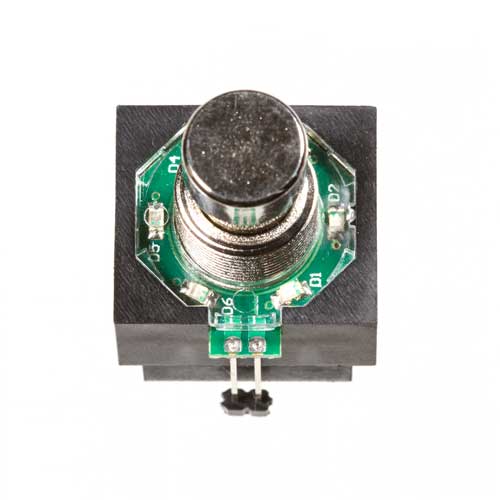

3PDT Foot Switch with LED Ring, Purple

3PDT Foot Switch with LED Ring, Purple

Regular price $6.00
Regular price Sale price $6.00
Shipping calculated at checkout.
SKU: FSLED-SL-P
Sold Out

Notify me when this product is available:

3PDT Foot Switch With LED Ring

 Download Wiring Diagram (PDF)

Wiring boards are available here: https://guitarpedalparts.com/product/wiring-board-for-3pdt-with-led/

Introducing new 3PDT foot switches with integrated LED rings! Our same quality switches with 6 built in LEDs to make your pedal builds shine.

  • 6 Red LEDs built into the switch cause the plastic washer to glow bright
  • Latching switch (standard for true bypass switching)
  • Solder lugs
  • High temperature ring epoxy
  • High temperature plastic casing
  • High quality internal components
  • Black color
  • Includes one nuts, one metal washer, one plastic glow washer

These switches require an 11/16" mounting hole for the plastic washer. The positive/negative connections for the LEDs are marked on the top of the switch on the circuit board. For a 9V power supply, a 470ohm or greater resistor should be used or the LEDs could be damaged.

NOTE: Switch body may be blue or black.
