3PDT Foot Switch with LED Ring, Red
3PDT Foot Switch with LED Ring, Red
Regular price
$6.00
Regular price
Sale price
$6.00
Unit price
per
Shipping calculated at checkout.
SKU: FSLED-SL-R
Sold Out
Notify me when this product is available:
Couldn't load pickup availability
Wiring boards are available here: https://guitarpedalparts.com/product/wiring-board-for-3pdt-with-led/
Introducing new 3PDT foot switches with integrated LED rings! Our same quality switches with 6 built in LEDs to make your pedal builds shine.
- 6 Red LEDs built into the switch cause the plastic washer to glow bright
- Latching switch (standard for true bypass switching)
- Solder lugs
- High temperature ring epoxy
- High temperature plastic casing
- High quality internal components
- Black color
- Includes one nuts, one metal washer, one plastic glow washer

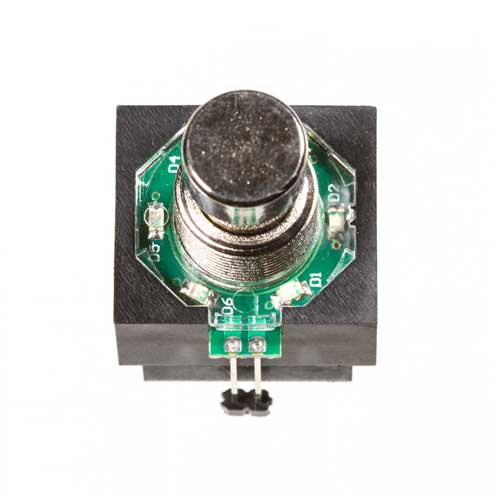

These switches require an 11/16" mounting hole for the plastic washer. The positive/negative connections for the LEDs are marked on the top of the switch on the circuit board. For a 9V power supply, a 470ohm or greater resistor should be used or the LEDs could be damaged.
