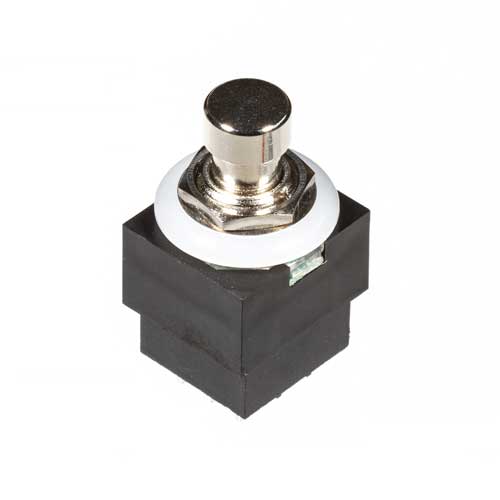

3PDT Foot Switch with LED Ring, Red/Green

 Download Wiring Diagram (PDF)

Wiring boards are available here: https://guitarpedalparts.com/product/wiring-board-for-3pdt-with-bi-color-led/

Introducing new 3PDT foot switches with integrated LED rings! Our same quality switches with 6 built in LEDs to make your pedal builds shine.

• LEDs built into the switch cause the plastic washer to glow bright

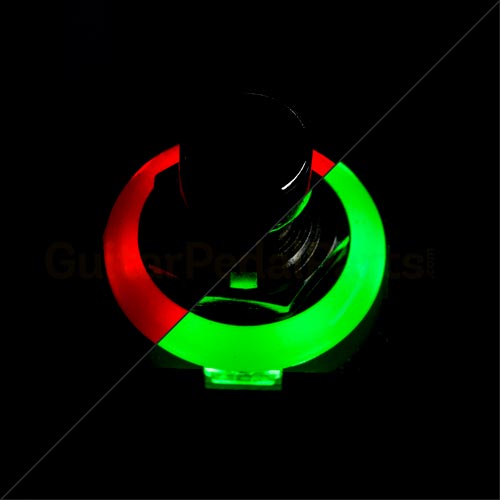

• Red/Green Bi-Color LEDs for on/off indication
• Latching switch (standard for true bypass switching)
• Solder lugs
• High temperature ring epoxy
• High temperature plastic casing
• High quality internal components
• Blue color
• Includes one nuts, one metal washer, one plastic glow washer

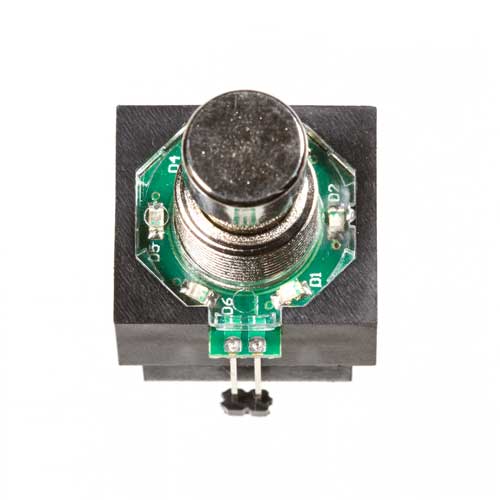

These switches require an 11/16" mounting hole for the plastic washer. The positive/negative connections for the LEDs are marked on the top of the switch on the circuit board. For a 9V power supply, a 470ohm or greater resistor should be used or the LEDs could be damaged.

Note: Bi-color version has 3 pins for LED ring (not pictured).
