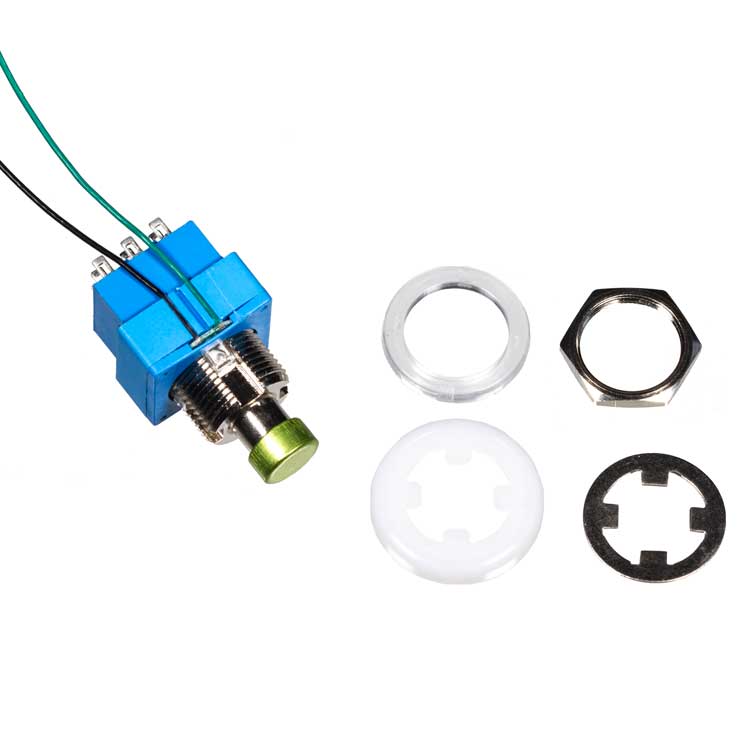

3PDT Foot Switch with LED Ring, Wired, Green

NOTE: Current stock has a silver cap like a regular switch, not green as pictured.

Introducing new 3PDT foot switches with integrated wired LED rings!

• Green LEDs built into the switch cause the plastic washer to glow bright
• Latching switch (standard for true bypass switching)
• Solder lugs
• High temperature plastic casing
• High quality internal components
• Green color
• Includes one nut, one metal washer, one plastic glow washer and one clear washer
• Leads are approx. 3 1/4" long from base of switch (83mm).

These switches require a 16mm mounting hole (about 5/8"). The LEDs function like a normal LED. The black wire is the negative connection and the colored wire is positive. For a 9V power supply, a 470ohm or greater resistor should be used or the LEDs could be damaged.
