B5K 16mm Potentiometer, Round Shaft, Solder Lugs

These potentiometers are custom manufactured for Guitar Pedal Parts. They are comparable to standard Alpha pots with similar specs, but at an incredible price! They do not have the small tab that always needs to be broken off, saving extra time on builds. For additional values or quantities, please contact us for an estimate.

View all potentiometers here.

• 5 Kohm value

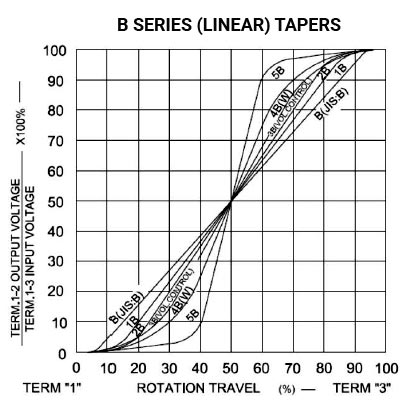

• Linear "B" taper
• 16mm diameter
• 1/4" (6.35mm) round shaft
• Solder lugs

• 15mm shaft length
• 20% tolerance
• 300 degree rotational angle
• 0.1W power rating
• 150VAC/20VDC max voltage
