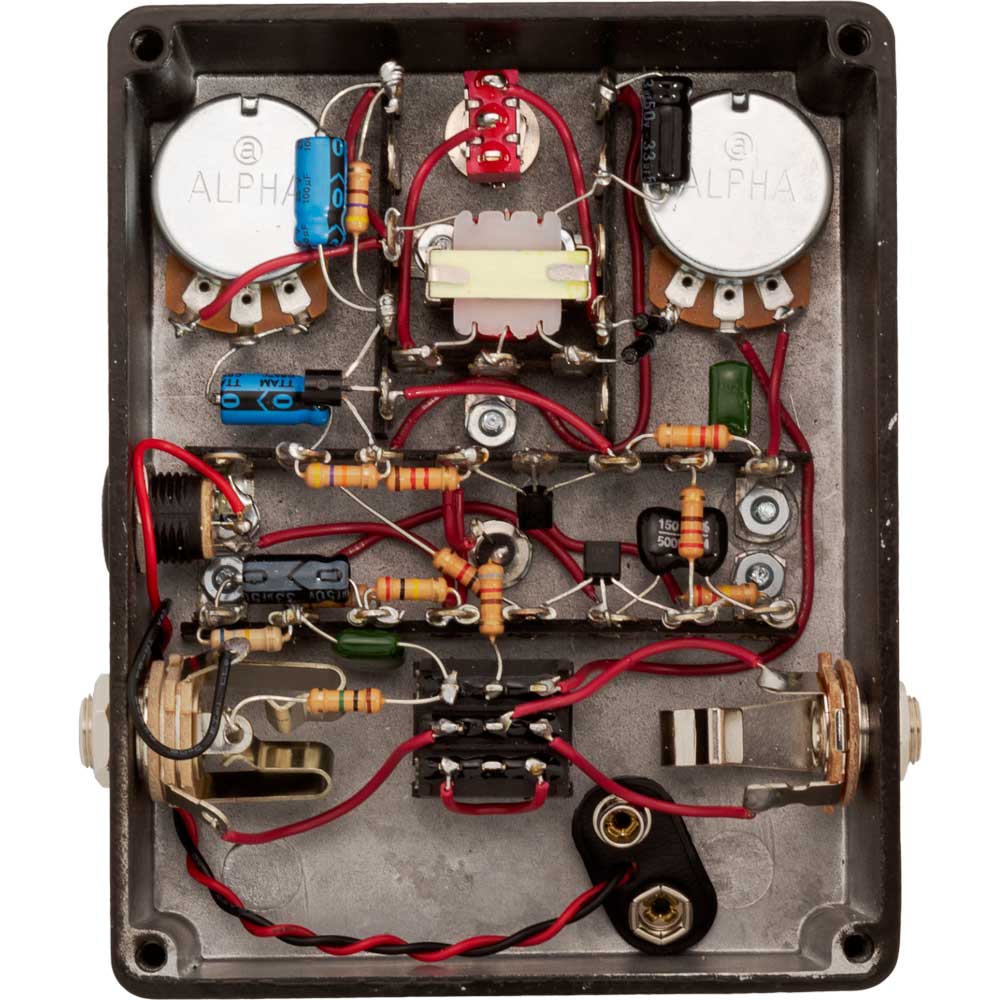

Ring In Return Octave-Up Fuzz DIY Pedal Kit

Kit Instructions

Schematic

Sound Samples

• Fuzz Octave Riff
• Clean Octave Solo
• Light Fuzz Riff
• Fuzz Octave Solo

The Ring In Return is an octave-up fuzz effect that is an all-analog design that captures those late 60s octave-up fuzz tones. Transformer-coupled germanium diodes produce sounds that range from a subtle octave-up to thick, harmonically-rich sonic textures and synth-like tones. Experimenting with different pickups and tone-control settings on your guitar with The Ring In Return can also produce sitar-like sounds.

Warning: This circuit was designed for use with a 9 VDC power supply only.
