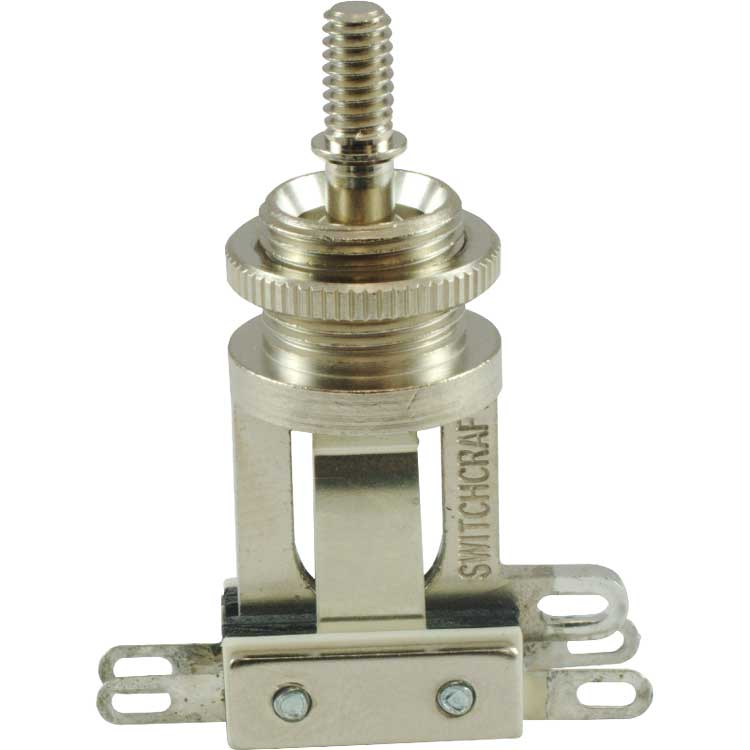

Switchcraft Les Paul 3 Position Guitar Toggle Switch
One of the most rugged and durable switches available for your Gibson Les Paul or similar two pickup guitars. Switchcraft switches are OEM equipment on Gibson and many other manufacturers and are chosen for their unmatched reliability.
Some Les Pauls and thicker bodied guitars with carved tops may require a deep threaded nut. Please check your guitar for compatibility.
- Thread height: 0.34”
- Fits .50” mounting hole
- Compatible with .875” control cavity depth
- #8-32 switch tip threading
- Includes 15/32" x 32 thread recessed knurled nut
- Pre tinned lugs for ease of soldering during installation
- Switch cap sold separately
Electrical
- Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.
- Leakage Resistance: 1,000 MW or greater
- Dielectric Strength: 250 VDC
Material
- Frame: Steel, plated
- Bushing and Shaft: Copper alloy, plated
- Springs: Copper alloy
- Mounting Hardware: Knurled copper alloy locknut T10711, supplied.
- Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end
