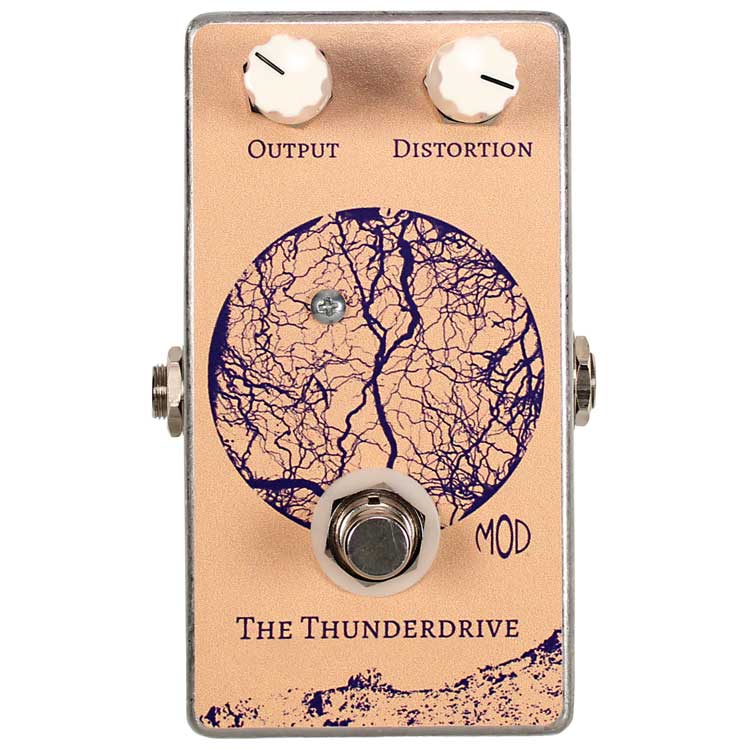

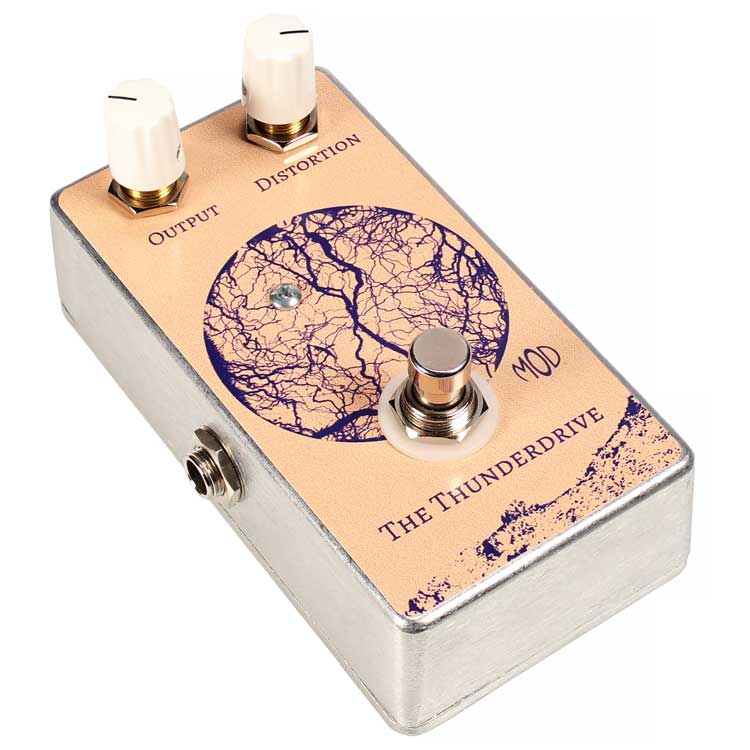

The Thunderdrive Overdrive DIY Pedal Kit

Kit Instructions

Power Jack Mod

Schematic

Troubleshooting

The Mod® Electronics Thunderdrive is an overdrive pedal kit that will provide a signal boost at low gain settings and its own distortion at maximum gain settings. You can use it to push your preamp into overdrive or as a source of smooth distortion. Adjusting volume control and gain control results in a wide variety of tones in spite of its simple construction.

This pedal is capable of overdriving the preamp section of your guitar amp or adding its own layer of distortion at lower volume. Using point to point wiring and easy to follow instructions you can have a working overdrive pedal in a matter of hours.

All you need to provide is solder and a soldering iron. Uses 9 volt battery which is not included.
