Wiring Board For 3PDT With Bi-Color LED

Wiring Board For 3PDT With Bi-Color LED

Regular price $0.75
Regular price Sale price $0.75
Shipping calculated at checkout.
In Stock

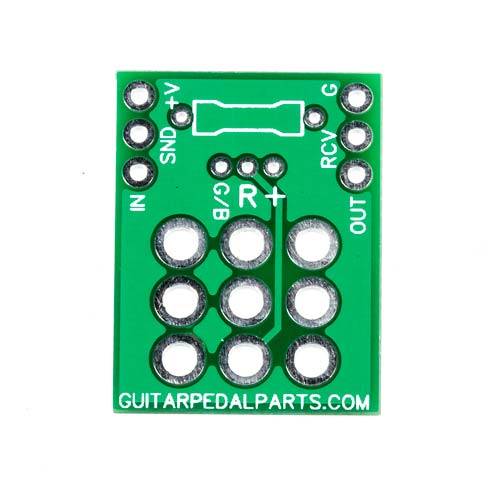

Wiring PCB board for our 3PDT foot switches with integrated Bi-color LED.

  • Works with our 3PDT with Bi-color LED
  • Mounts directly to foot switch and includes a spot for LED resistor.
  • After soldering the switch and resistor, simply connect power, ground, input, output, and effect input and output.
  • LED is Blue or Green when effect is active and Red when bypassed.

+V: Power
G: Ground
IN: Input jack tip
SND: PCB Input
RCV: PCB Output
OUT: Output jack tip
